CHARKOP DEPOT FOR MUMBAI METRO LINE 2

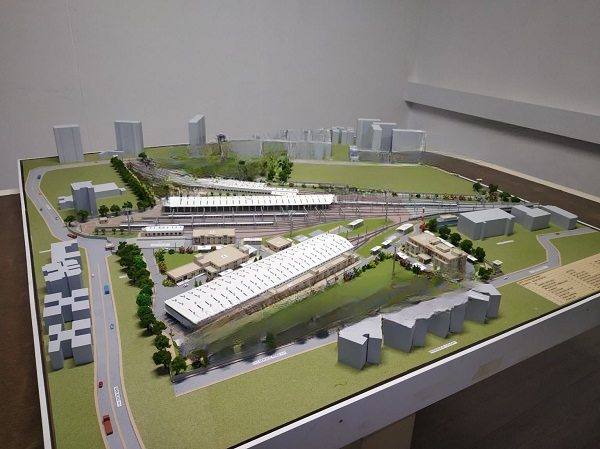

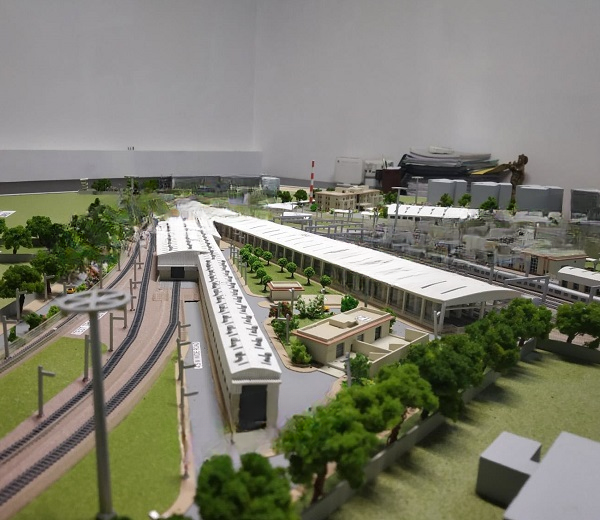

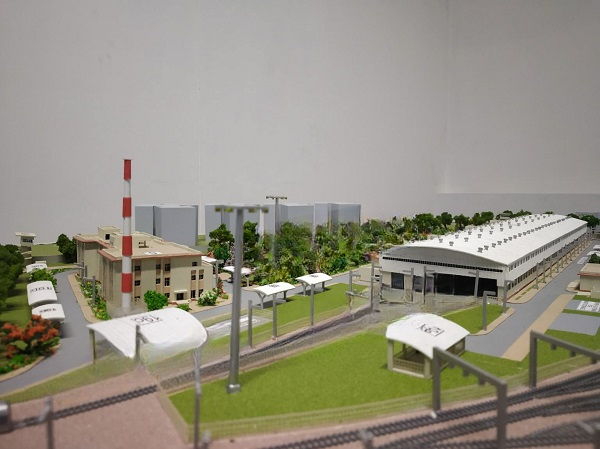

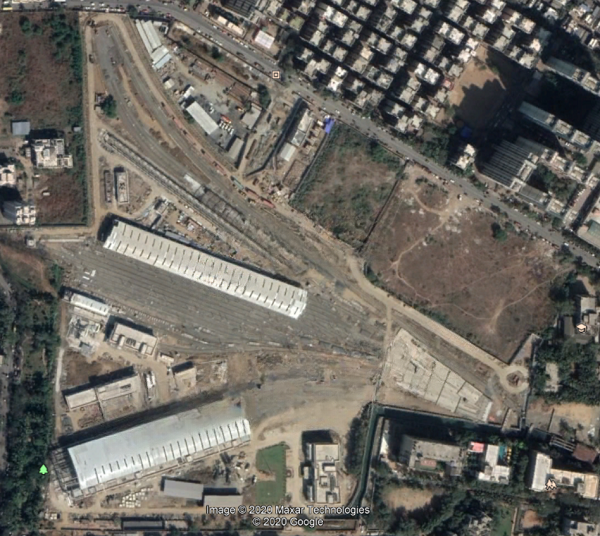

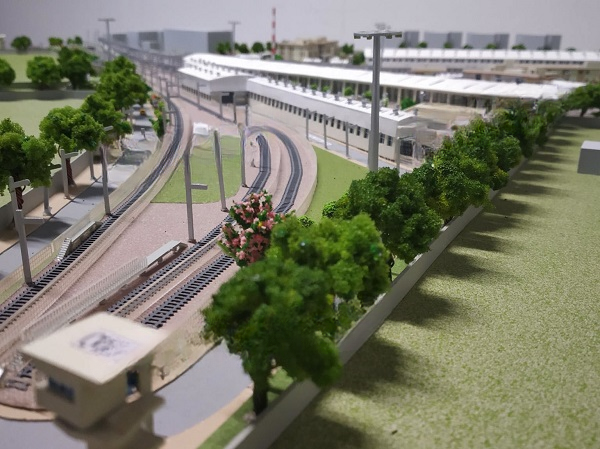

As part of the development of Mumbai Metro Line 2, a key infrastructure component was the establishment of the Rolling Stock and Signalling Shed at Charkop Depot. This facility plays a critical role in housing, maintaining, and managing metro train operations, ensuring seamless functioning and operational efficiency of the metro network.

Description of Services Provided by Syntegrity Consulting:

Syntegrity Consulting was entrusted with the detailed structural design engineering of the Rolling Stock and Signalling Shed, providing end-to-end technical support to meet stringent metro standards and safety norms. The scope of work included:

1. Structural Design and Detailing
   • Preparation of structural design for the main shed structure including heavy-duty steel and RCC elements, gantries, inspection bays, crane girders, and equipment platforms.
   • Consideration of dynamic loading from rolling stock operations, crane movements, and maintenance activities.
2. Design of Foundations and Substructures
   • Design of foundations and plinths for heavy machinery, signalling equipment, rails, and maintenance facilities.
   • Site-specific geotechnical considerations were incorporated for long-term stability and performance.
3. Service Integration Coordination
   • Structural interface design with signalling systems, power supply equipment, and service ducts to enable uninterrupted depot operations.
4. Preparation of Structural Models and Analysis Reports
   • Creation of robust structural models using STAAD, ETABS, and other design tools to simulate load conditions and optimize material use.
   • Submission of detailed design calculations and safety compliance reports as per Metro Rail design guidelines.
5. Drawing and Documentation Support
   • Delivery of comprehensive construction-ready drawings, general arrangement drawings (GADs), and design documentation for contractor and client review.

Syntegrity’s designs ensured efficient functionality, structural durability, and fast-track execution readiness—enabling Charkop Depot to serve as a reliable hub for metro maintenance and operations.
